265 cm x 140 cm – motor boat – CNC files
265 cm x 140 cm – power boat – CNC plans

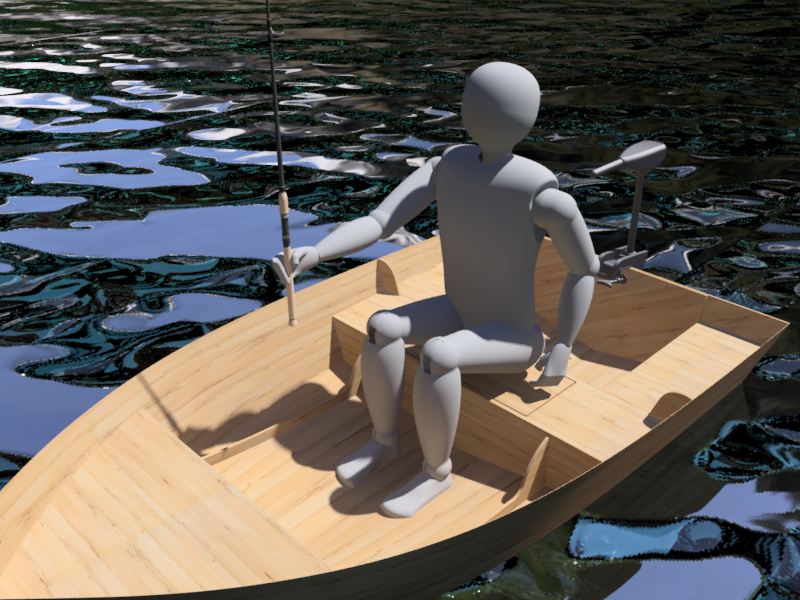

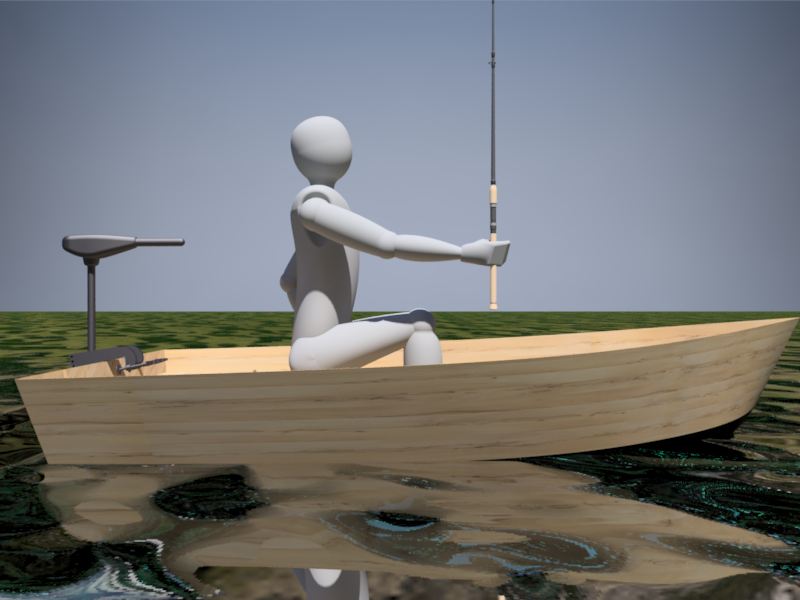

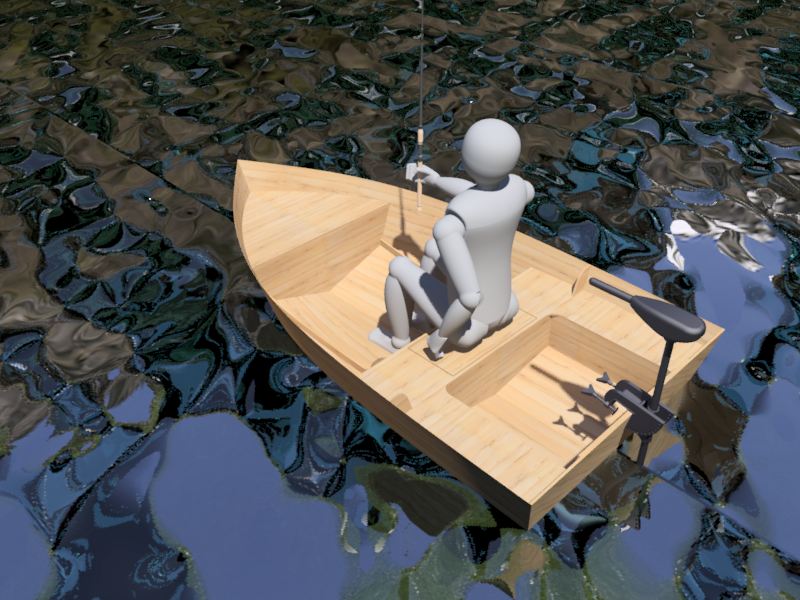

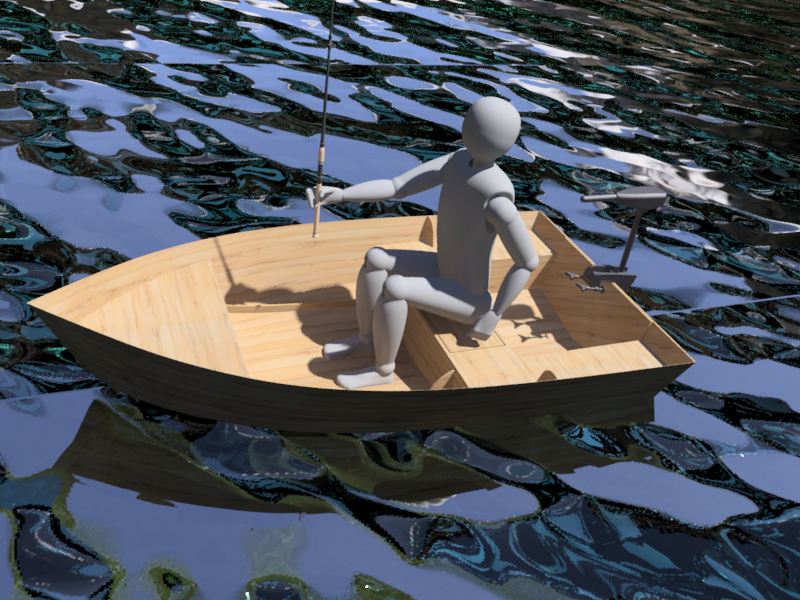

Build a boat yourself. Plywood fishing and recreational boat. Motor Boat type – plans for independent construction. High stability and an almost flat bottom are the advantages of this boat.
Technical data:
- Length over all : 2.65 m
- Beam over all : 1.40 m
- Design draft : 14,5 cm
- Design displacement 209 kg
- Max recommended draft: 18,5 cm
- Max recommended displacement: 310 kg
- Design category „D”
- Mass of boat: aprox 45 kg

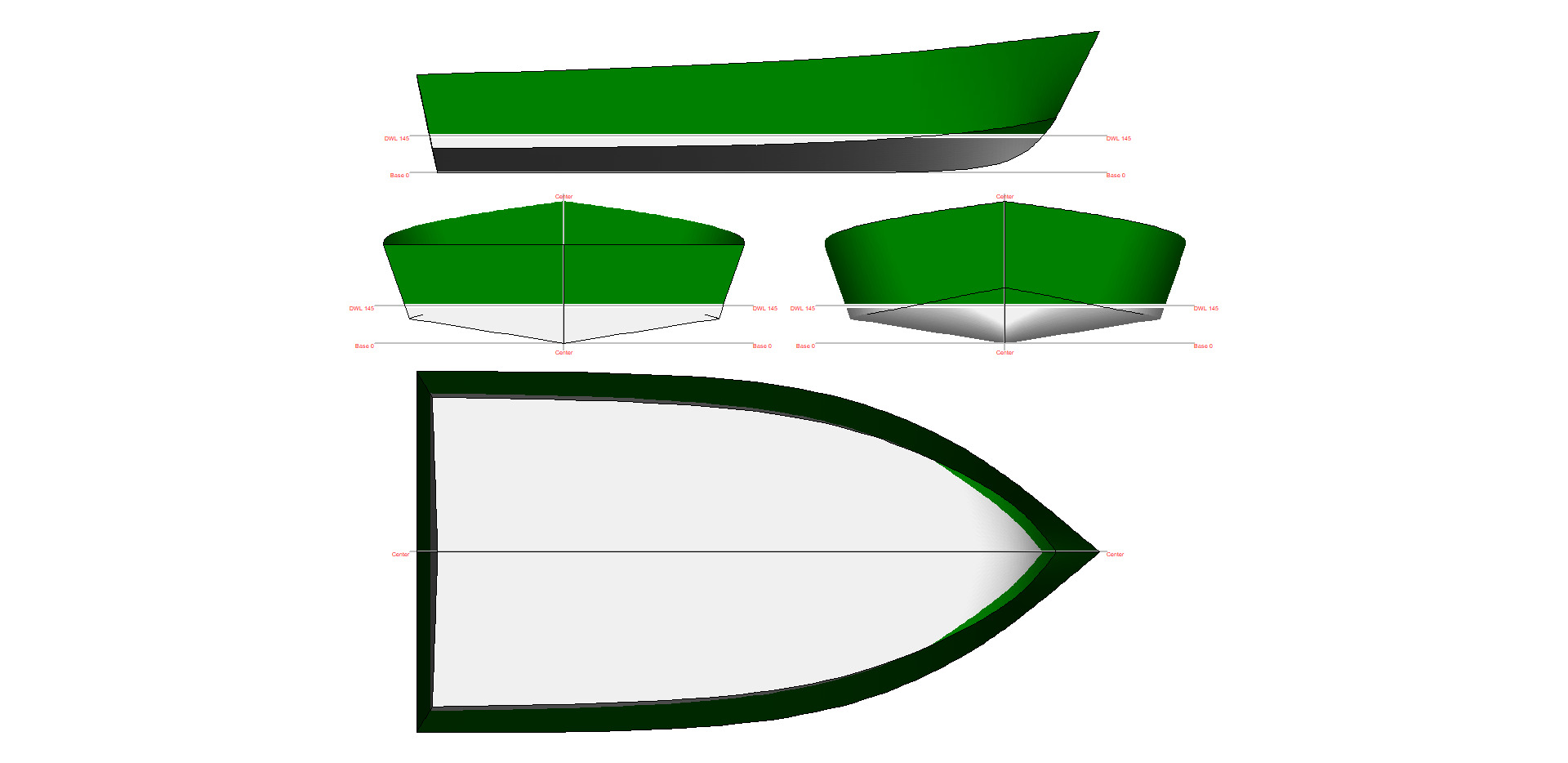

- Plan in mm (metric scale)
Buoyancy chambers:
- Stern – 2 pcs x 26,5 liters
- Center – 2 pcs x 11 liters
- Bow – 1 pcs x 70 liters

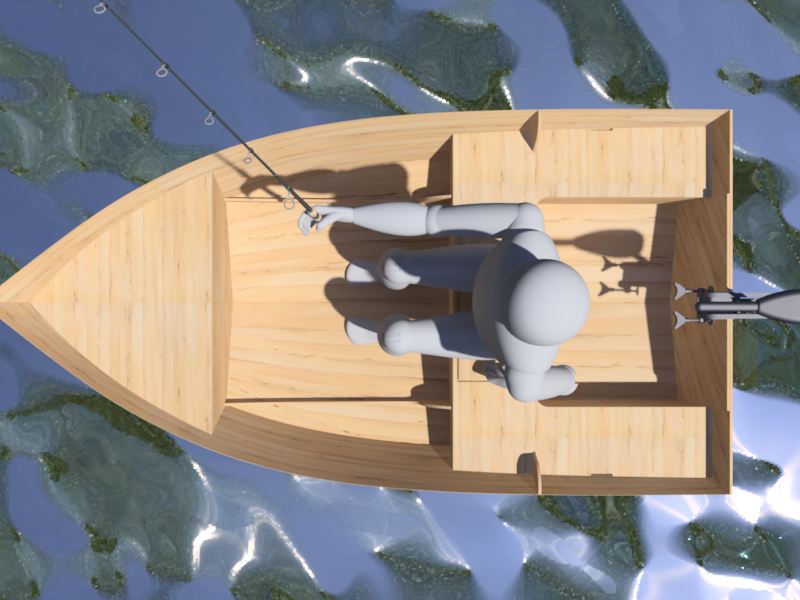

Lockers:
- Center locer – 1 pcs – 55 liters
Dimesions: Long: 790mm, Widht: 290mm, Height: 200-270mm
CNC – Plans “Cutting Files” – and boat building manual – 9,95 €
You will need:
- 2 pcs – 6 mm waterproof plywood (1250 x 2500 mm)
- 2 pcs –10 mm waterproof plywood (1220 x 2440 mm)
- 2 pcs – 30 x 30 mm – pine / cedar slats for gunwale – 3 m long
