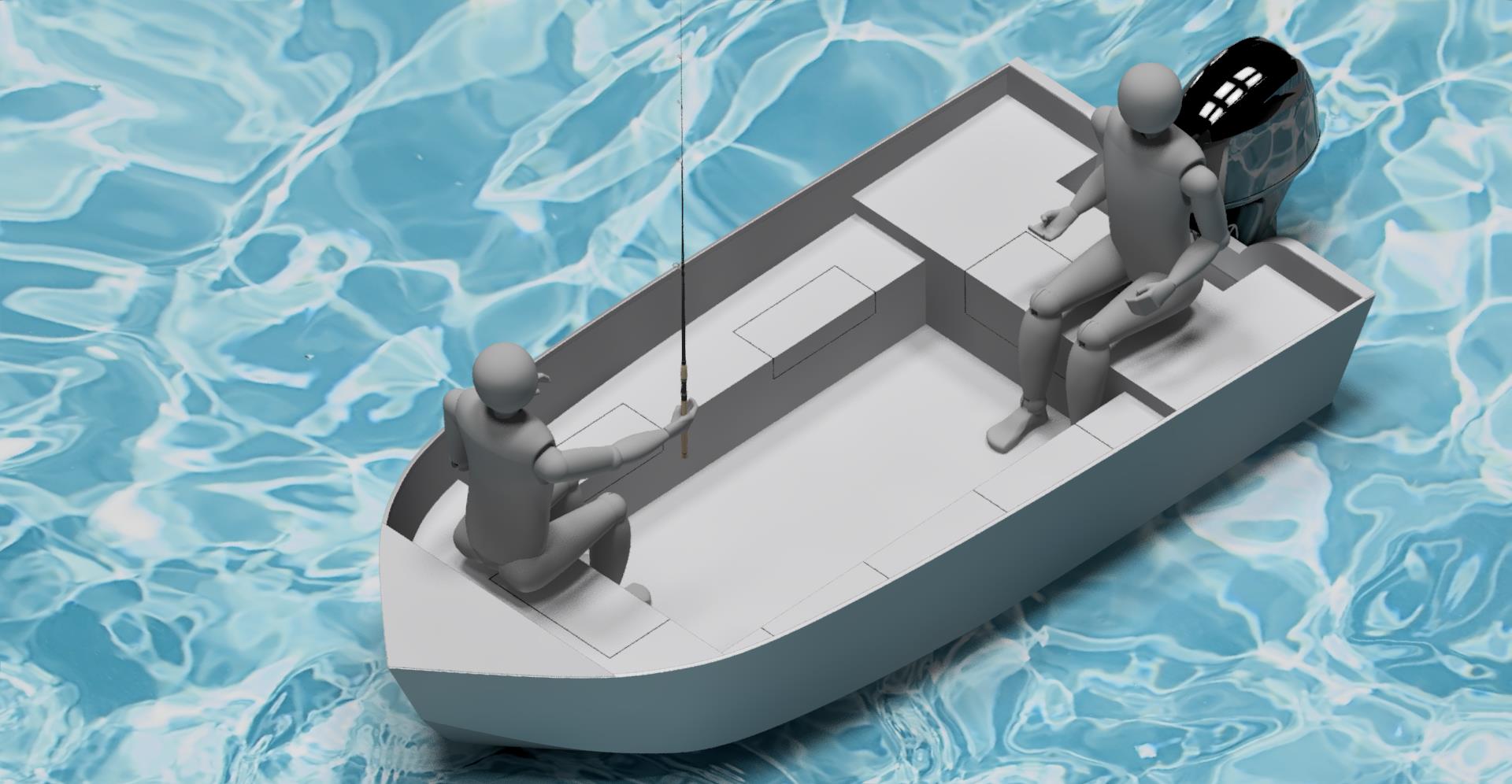

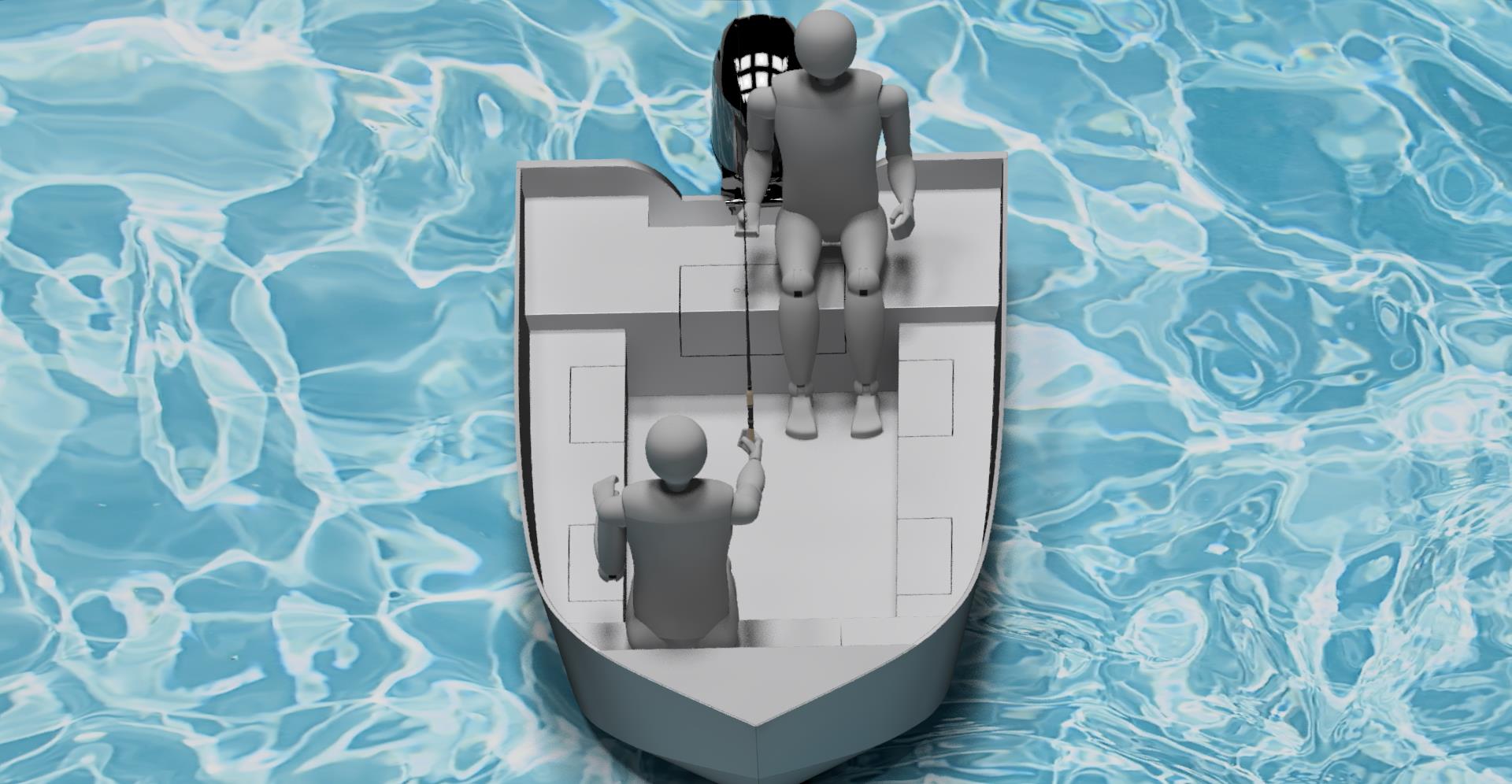

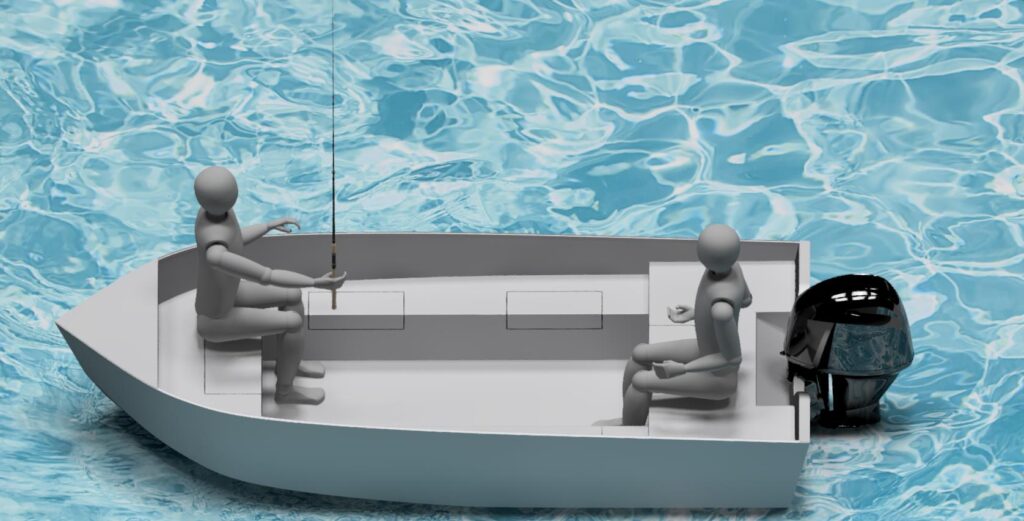

400 cm x 180 cm – Aluminium Motor Boat – CNC Plans
Quite easy to build small aluminium fishing boat – made with alloy 5074 or 5083. Can be welded by TIG or MIG
- Hull length: 4.00 m
- Hull width 1.80 m
- KLW length: 3.38 m
- KLW width: 1.56 m
- Draft waterline: 15 cm
- Displacement up to KLW: 427 kg
- Crew: max 4 people
- Design category “C”
- Transom inclination angle 12 degrees
- Transom height 508mm (foot “L”)
- Outboard engine: max 40 HP
- displacement chambers
- 6 closed lockers:
- 1 aft
- 2 x 2 small ones on the port side
- 1 large on the starboard
- all lockers are locked
Bulding method: "welding aluminium"
CNC – Cutting Files and manual of assembly – 440 €
KIT – Cut parts for the boat – on request
Complete boat – on request.
PRE ORDER THIS PLANS
WITH 45% DISCOUNT!!!
Interested this boat? Write us: firstname.lastname@example.org or use form below.
