265 cm x 140 cm – motor boat – PDF plans

265 cm x 140 cm – power boat – PDF plans

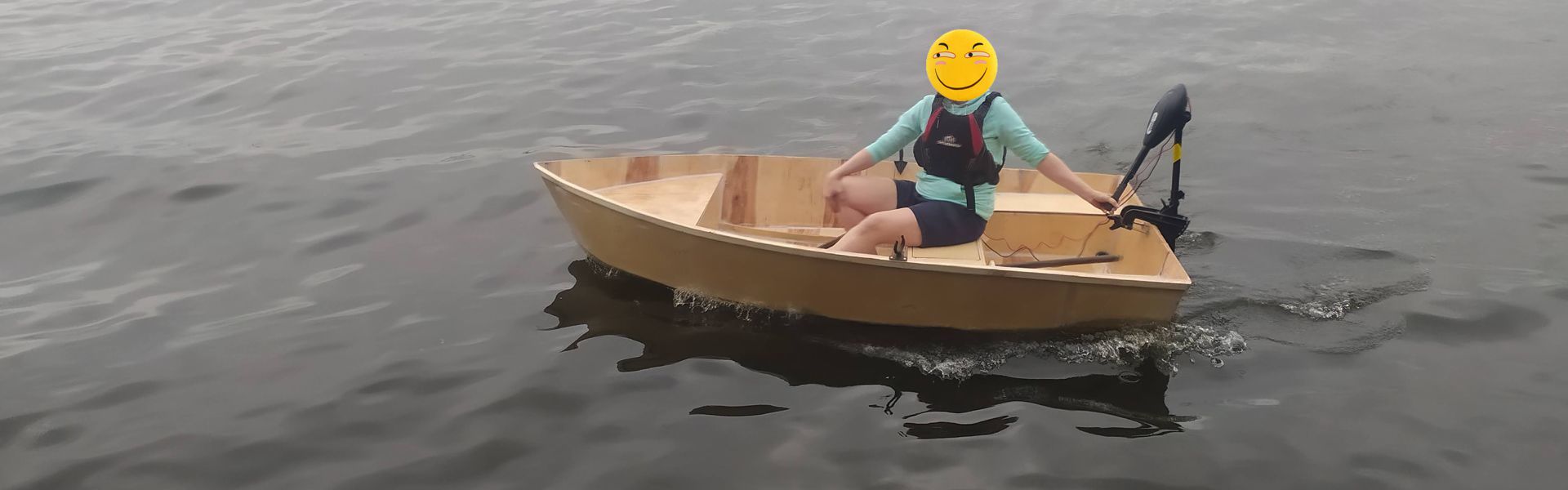

Build a boat yourself. Plywood fishing and recreational boat, Motor Boat type – plans for independent construction. High stability and an almost flat bottom are the advantages of this boat.

Technical data:
  • Length over all : 2.65 m
  • Beam over all : 1.40 m
  • Design draft : 14,5 cm
  • Design displacement 209 kg
  • Max recommended draft: 18,5 cm
  • Max recommended displacement: 310 kg
  • Design category „D”
  • Mass of boat: aprox 45 kg
  • Plan in mm (metric scale)
Buoyancy chambers:
  • Stern – 2 pcs x 26,5 liters
  • Center – 2 pcs x 11 liters
  • Bow – 1 pcs x 70 liters
Lockers:
  • Center locer – 1 pcs – 55 liters

Dimesions: Long: 790mm, Widht: 290mm, Height: 200-270mm

Boat Kit: “Plywood Boat KIT” – Available on request

Bulding method: "stitch and glue"

PDF plans and manual of assembly – 9,95 €


Boat Kit: “Plywood Boat KIT” – Available on request


Complete boat – on request.
