290 cm x 155 cm – flat bottom motor boat – CNC files
290 cm x 155 cm – power boat – CNC plans
Low cost – flat bottom boat, easy to building, using stitch and glue method. Three person boat
Technical data:
- Length over all : 2.9 cm
- Beam over all : 1.55 m
- Design draft : 14 cm
- Displacement : 350kg
- Crew: max 3 person
- Design category „D”
- Transom inclination angle 12 degrees
- Outboard engine: electric or 10 HP
Bulding method: „stitch and glue”
You need:
- 3 pcs – 6 mm waterproof plywood (1250 x 2500 mm)
- 2 pcs – 10 mm waterproof plywood (1250 x 2500 mm)
- 8 meters of pine wood 20 x 30 or similar for gunwale.
CNC plans for self self cutting and manual of assembly – 15 €
KIT – Cut parts for the boat – on request
Complete boat – on request.

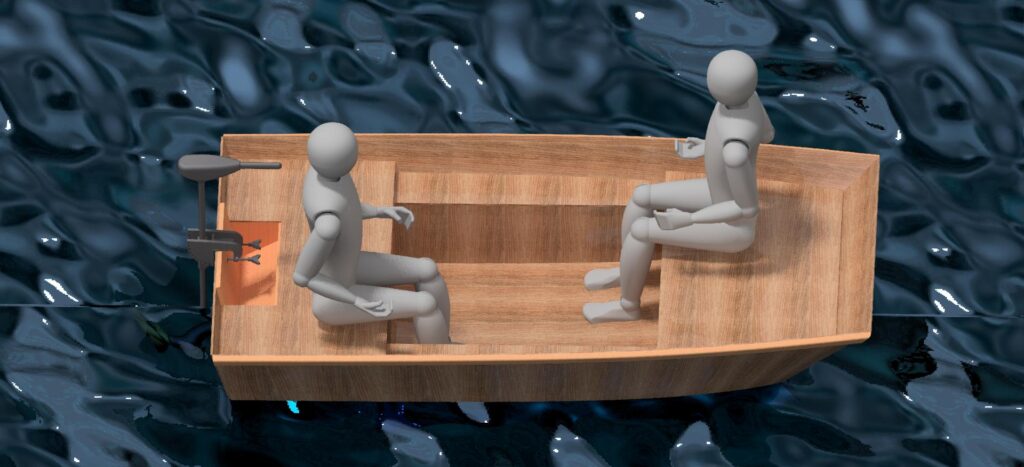

3D View of 290 cm x 155 cm – Power Boat – Model
For rotate 3d view use mouse (on computer) or fingers (on phone or tablet)
Interested this boat? Write us: info@free-boat-plans.com or use form below.
