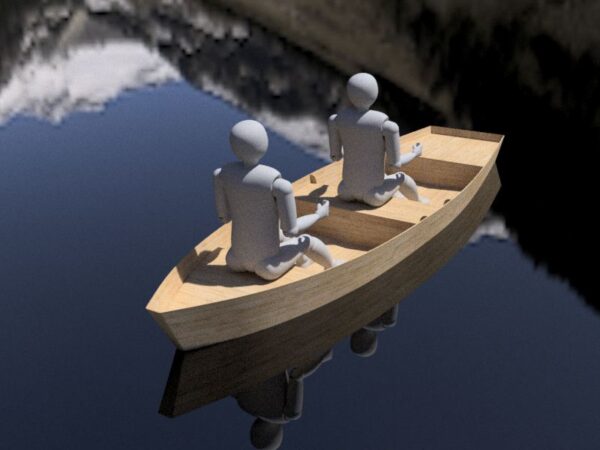

440 cm x 128 cm – Rowing Boat – PDF plans 1-1 scale

12,00

Downloadable version of plans. Instant download immediately after paying.

Out of stock

Description

Technical data:
  • Length over all : 4.40 m
  • Beam over all : 1.28 m
  • Design draft : 10 cm
  • Design displacement : 258 kg
  • Max recommended draft: 15 cm
  • Max recommended displacement: 454 kg
  • Design category „D”
  • Mass of boat: aprox 45 kg
  • Plan in mm (metric scale)
Buoyancy chambers:
  • Stern – 1 pcs x 125 liters
  • Center – 1 pcs x 120 liters
  • Bow – 1 pcs x 110 liters
Bulding method: "stitch and glue"
You will need:
  • 4 pcs – 6 mm waterproof plywood (1220 x 2440 mm)
  • 1 pcs – 10 mm waterproof plywood (1220 x 2440 mm)
  • 1 pcs – 10 mm waterproof plywood (1220 x 1220 mm) – half of plywood sheet.
  • 2 pcs – 30 x 40 mm – pine / cedar slats for gunwale – 4.5 m long (or similar)
  Full description of plans here: https://free-boat-plans.com/row-boats/440-cm-x-128-cm-rowing-boat-pdf-plans/
