Additional information
| Chose Plans | Metric Plans, Imperial Plans |
|---|---|
| Chose Type | Wood Plans, Steel / Metal Plans, Aluminum Plans |
17 Foot (5.2m) Aluminum Jon Boat Plans
18 Foot (5.5 meters) Aluminum Utility Skiff Plans with center console
Hobie Cat 16 – Dollie plans
8,09 €
Related products
-
8,09 €Technical data:
- Length over all : 2.65 m
- Beam over all : 1.40 m
- Design draft : 14,5 cm
- Design displacement 209 kg
- Max recommended draft: 18,5 cm
- Max recommended displacement: 310 kg
- Design category „D”
- Mass of boat: aprox 45 kg
- Plan in mm (metric scale)
9 Foot (2.65 meters) Plywood Utility Skiff Plans
8,09 € Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
12,19 € – 174,80 €- Hull length: 17′ (5,18m)
- Hull width 80″ (2,03m)
- Chine Width 60″ (1,52m)
- Max MPH 30-32 mph
- Side Depth 29,5″ (75 cm)
- Cockpit Depth 23″ (58 cm)
- Fuel Capacity – Portable
- Deadrise 4,75°
- Dry hul weight: 870 lbs (395 kg)
- Weight (Boat + max engine, dry) 1135 lbs (515 kg)
- Front Livewell Capacity: 17 Gal – 65 liters
- Front Livewell Length: 32″ (82 cm) Long
- Draft max. water line: 5″ – 7″ (12 – 19 cm)
- Displacement max: 1796 lbs (815 kg)
- Max Person weight 661 lbs (300 kg)
- Maximum Persons 4
- Design category „C”
- Transom inclination angle 12 degrees
- Transom Height: 20″ – 508mm (foot “L”)
- Outboard engine: 20 HP – 60 HP
1760 Aluminum Jon Boat Plans with side console
12,19 € – 174,80 € Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
4,06 € – 93,50 €- Length : 11 ‘ 4″ (3.45 Meters)
- Beam : 65″ (1.65 Meters)
- Depth: 4″ (16 Cm)
- Engine: 5-20 HP Long Shaft (20″ transom notch)
- Dry Hull Weight: 319 Lbs. (145kg.)
- Max Gross Load: 3 Persons @75kg = 150kg
- (Class “C”)

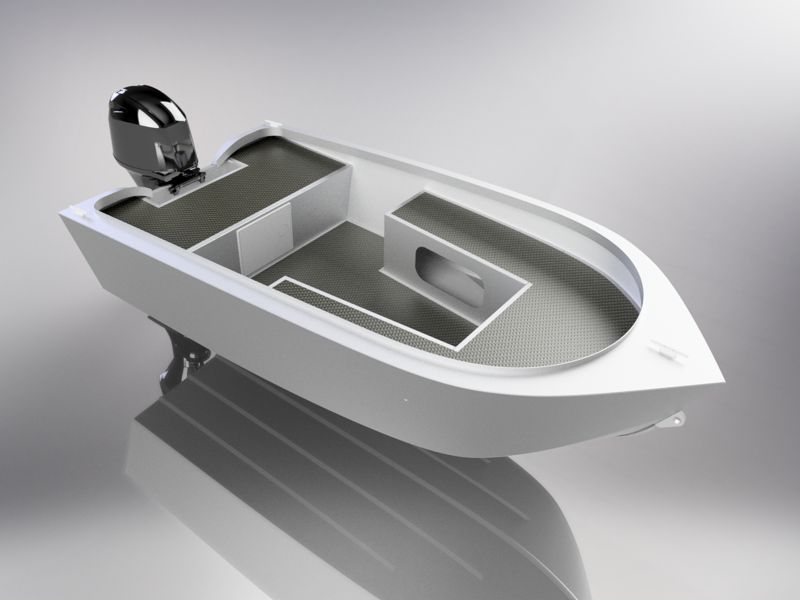

11 Foot (3.45m) Aluminum Utility Skif Plans
4,06 € – 93,50 € Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
17 Foot (5.2m) Aluminum Jon Boat Plans
243,90 € Select options This product has multiple variants. The options may be chosen on the product pageQuick View
