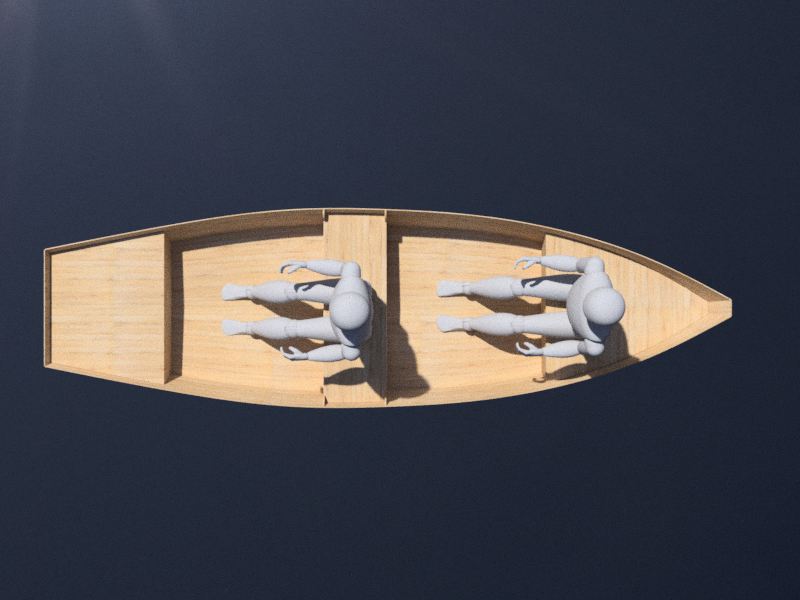

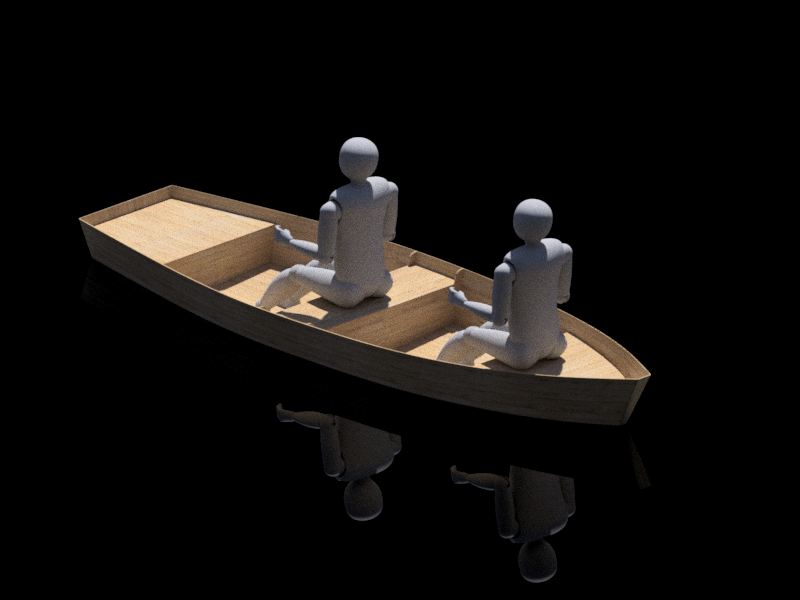

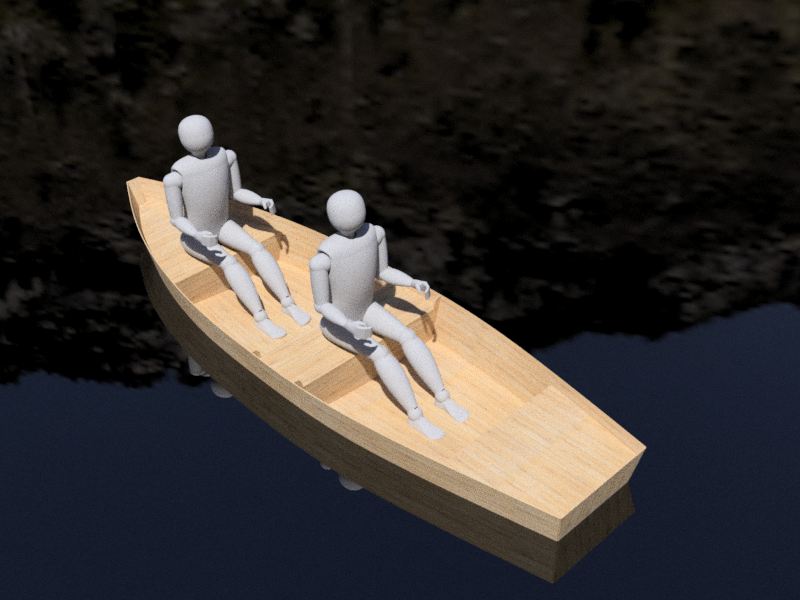

440 cm x 128 cm – rowing boat – PDF plans

Technical data:

• Length over all : 4.40 m
• Beam over all : 1.28 m
• Design draft : 10 cm
• Design displacement : 258 kg
• Max recommended draft: 15 cm
• Max recommended displacement: 454 kg
• Design category „D”
• Mass of boat: aprox 45 kg
• Plan in mm (metric scale)

Buoyancy chambers:

• Stern – 1 pcs x 125 liters
• Center – 1 pcs x 120 liters
• Bow – 1 pcs x 110 liters

PDF Plans and manual of assembly – 12 euro

You will need:

• 4 pcs – 6 mm waterproof plywood (1220 x 2440 mm)
• 1 pcs – 10 mm waterproof plywood (1220 x 2440 mm)
• 1 pcs – 10 mm waterproof plywood (1220 x 1220 mm) – half of plywood sheet.
• 2 pcs – 30 x 40 mm – pine / cedar slats for gunwale – 4.5 m long (or similar)

FREE Sample files of this boat – available here:

Free sample file including:

• 1:1 sample – pdf (one of sheet 1220 x 2440mm) for wide format printers
