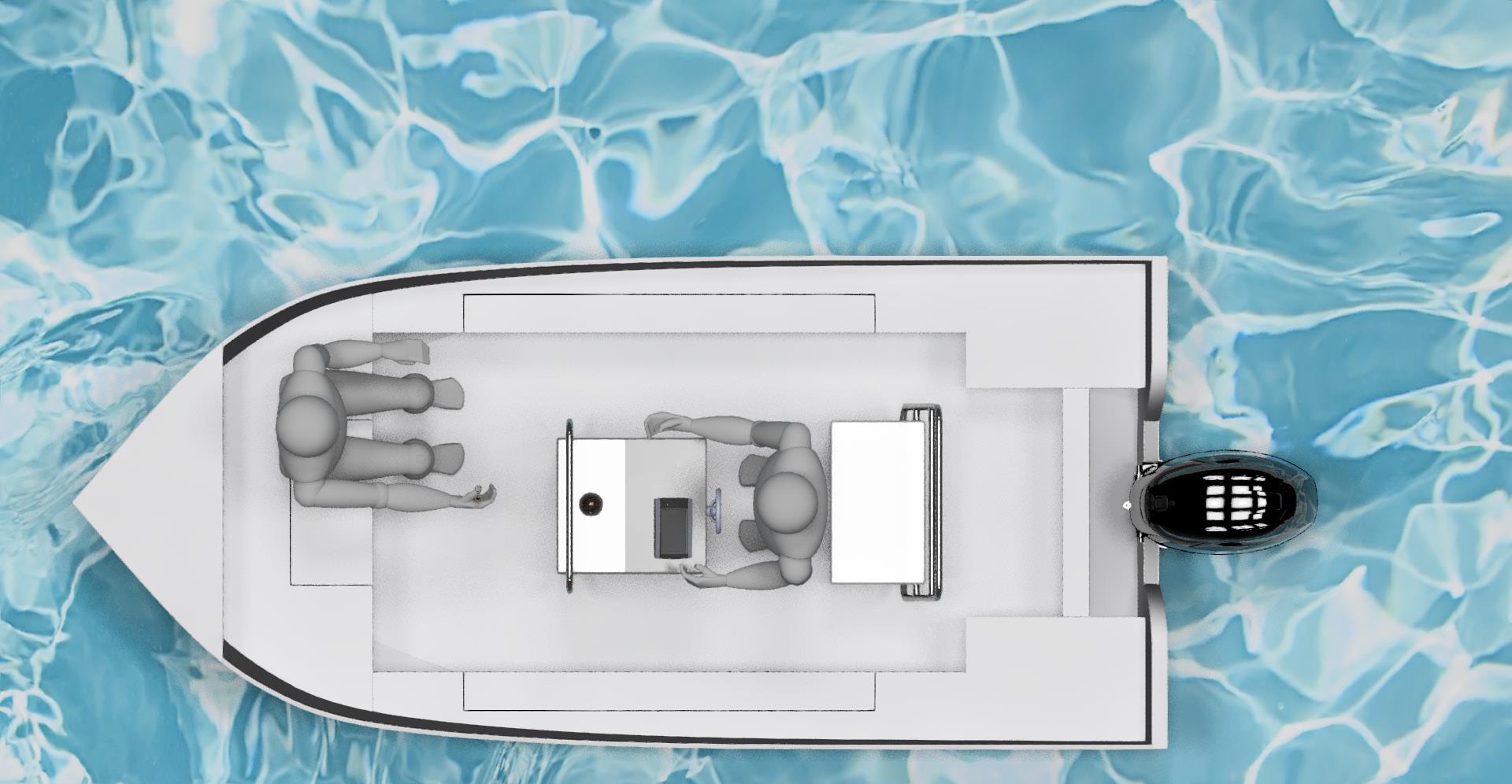

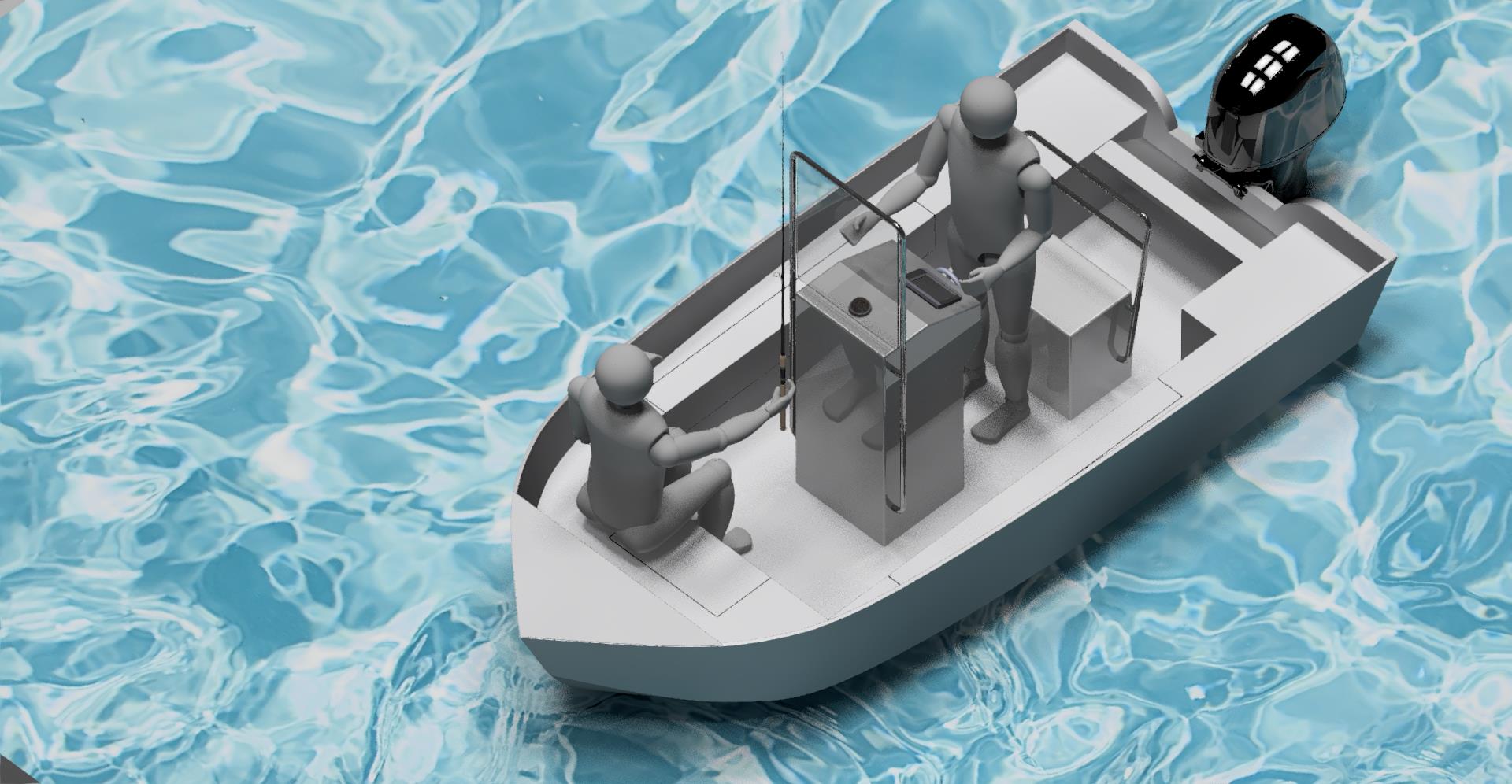

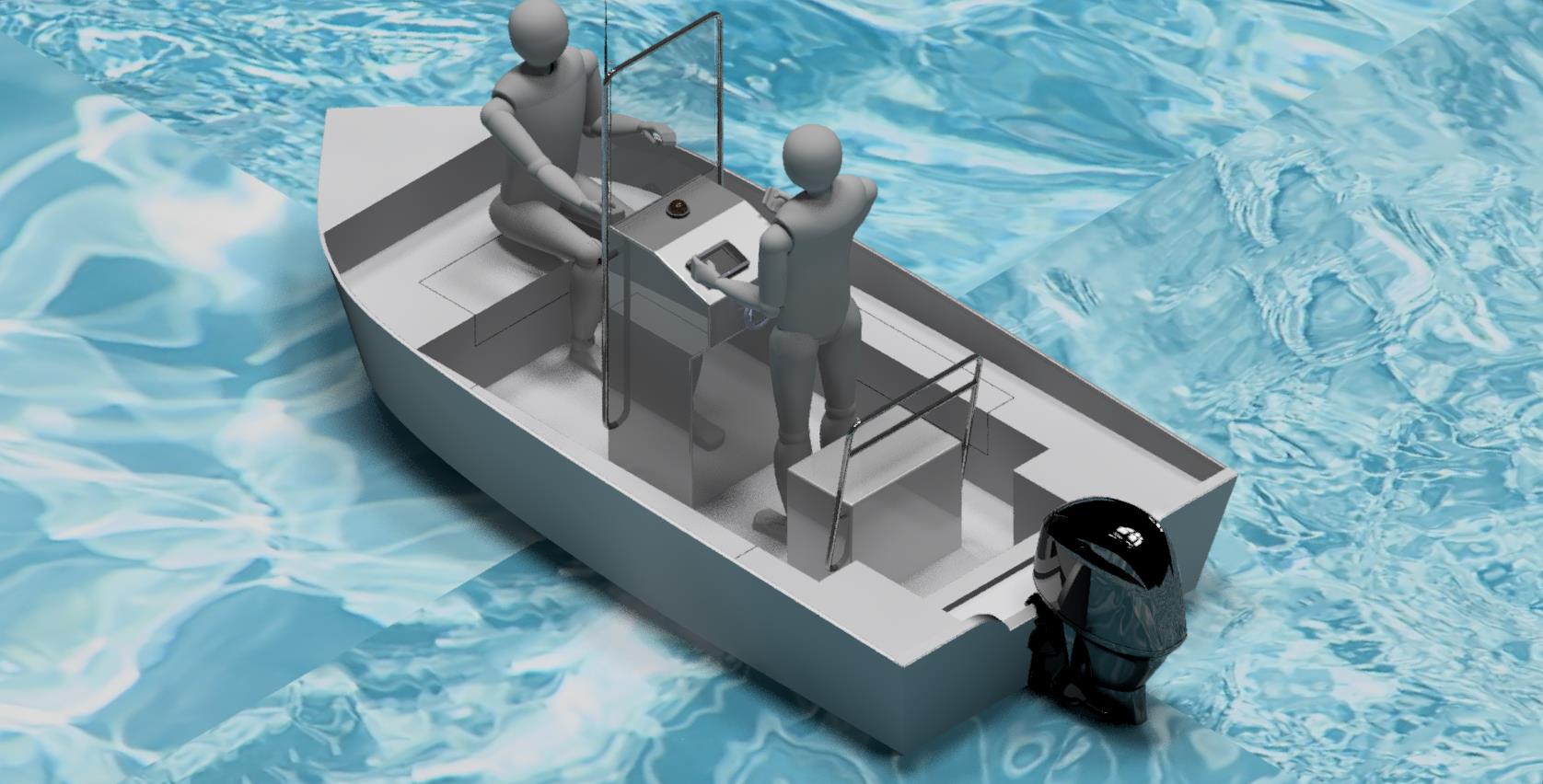

400 cm x 180 cm – Aluminum Motor Boat – Center Console – CNC files

400 cm x 180 cm – Aluminum Motor Boat – Center Console – CNC Plans

Quite easy to build small aluminium fishing boat – made with alloy 5074 or 5083. Can be welded by TIG or MIG

Specifications :

  • Hull length: 4.00 m
  • Hull width 1.80 m
  • KLW length: 3.38 m
  • KLW width: 1.56 m
  • Draft waterline: 15 cm
  • Displacement up to KLW: 427 kg
  • Crew: max 4 people
  • Design category “C”
  • Transom inclination angle 12 degrees
  • Transom height 508mm (foot “L”)
  • Outboard engine: max 40 HP
  • displacement chambers
  • 6 closed lockers:
    • 1 aft
    • 2 x 2 small ones on the port side
    • 1 large on the starboard
  • all lockers are locked

Bulding method: "welding aluminium"

CNC – Cutting Files and manual of assembly – 445 €


KIT – Cut parts for the boat – on request


Complete boat – on request.

400 cm x 180 cm – motor boat – center console – CNC files

PRE ORDER THIS PLANS

WITH 45% DISCOUNT!!!
